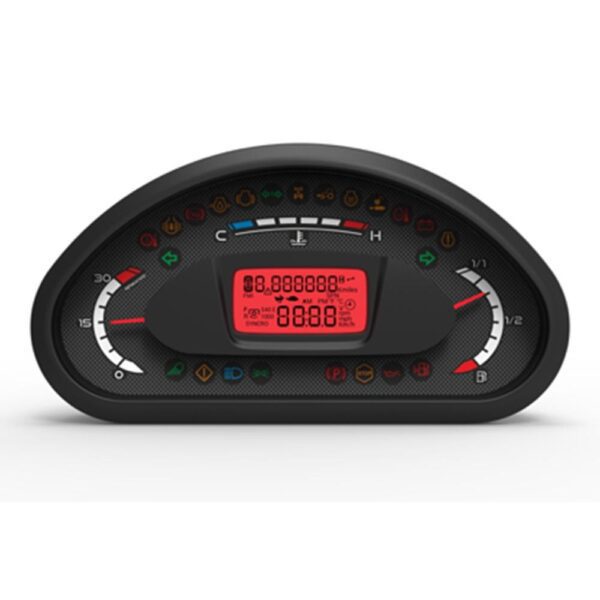

Dashboard “Quik Standard”, 12V
1,00 €
LCD-segment display 2,2″, analog gauges fuel & revolution speed, 18 x LED…
Compare
-
Description
-
technical information
-
Files & Downloads
LCD-segment display 2,2″, analog gauges fuel & revolution speed, 18 x LED indicator lights, 1x CAN ISO 11898, 22 x Inputs, 2 x analog Inputs, 2 x frequency Inputs
| Rated voltage | 12V |
|---|---|
| CAN protocol | CAN 2.0B ISO11898 |
| Foil design | Multi-colour printing, customizable |
| Display | Icon Segment LCD 2.2" 50 x 24mm black/white |
| Backlight | LCD and needles red, analog indicators and bar graph white, with dimming function |
| Number of bargraphs | 6 LEDs |
| Number of indicator lights | 18 |
| Measuring instrument | 2x analog, 1x digital |
| Analogue/digital inputs | 22x digital, 2x analog, 2x frequency |
| Digital output | 1x 500mA low-side |
| Permissible ambient temperature | -30°C up to 75°C |
| Controller | ST SPC560B54 family |
| Memory | 768 kB, RAM 64kB |
| Signal | signaller 90dB(A) +/- 3dB(A) |
| Protection class | IP66 front / IP65 rear |
| Mounting/installation | built-in |
