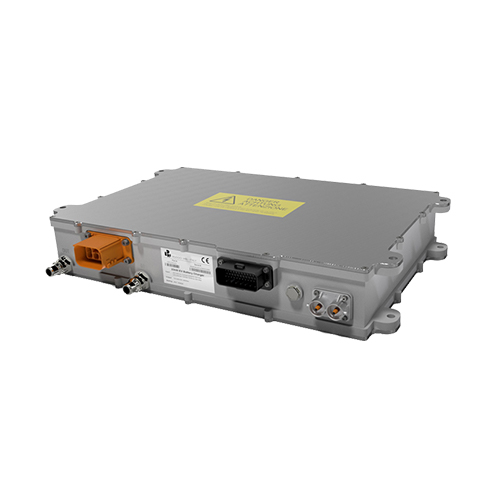

HPC22KL, 22kW EV/HEV on-board charger for heavy-duty and robust vehicle applications

HPC22KL charger series is 22 kW high power density power module, very versatile, safe, optimized for on-board battery powered vehicle applications.

• 22 kW AC three-phase 400/480 Vac.
• 7.3 kW AC single-phase 230/240 Vac.
• Parallel connections until 5 units.
• SAE J1772 and EN 61851 fully compliance.
• DC fast charging (CCS) communication (optional).
• HVDC connector external interlock monitoring.
• Typical efficiency >94%.
• High AC input power factor and low THD.
• AC/DC galvanic isolation assures a definitive safety separation between the vehicle and grid.
• IP67, IP6K9K protection rating.
• Outputs are short-circuit and reverse polarity protected.
• Fully CAN controlled by EDN’s protocol (v2.0B).
• SAE J1939 compliance.
• De-rated for extreme durability.
