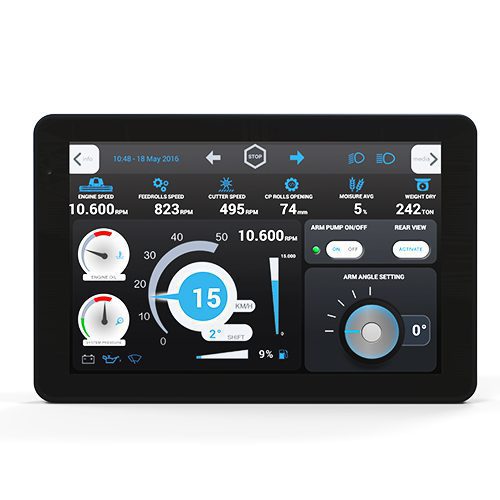

Dashboard “Leonardo”, 12/24V
1,00 €
TFT LCD 12.1”, 1280 x 800 pixel, 16:9, 261mm x 163mm viewing…
Compare
-
Description
-
technical information
-
Files & Downloads
TFT LCD 12.1”, 1280 x 800 pixel, 16:9, 261mm x 163mm viewing area, Multi-touch, RESET key, light sensor, 2x CAN ISO 11898, 1x LIN 2.2, 4x digital Inputs, 2x analog Inputs 2x digital Output, Ethernet, RTC, USB 2.0, Status LEDs, speaker & stereo Output, 2x analog Video Input
| Rated voltage | 12/24V |
|---|---|
| CAN protocol | 2x CAN 2.0B ISO11898 |
| Display | TFT LCD 12.1'', 1280 x 800 pixel, 16:9, 261mm x 163mm |
| Capacitive touch | multi touch capability (up to 10 points), protective glass |
| Backlight | with user-programmable dimming function |
| Analogue/digital inputs | 4x digital, 2x analog |
| Digital output | 2x digital |
| Permissible ambient temperature | -30°C up to 70°C |
| Controller | Jacinto 6 (DRA744x) |
| Memory | 512 kB, 16 MB |
| RTC | ± 2,17 sec per day, retention time > 10' backed up by capacitors |
| Ethernet | BroadR-Reach Ethernet 100Mb/s on 1 UTP |
| Video Input | 2x analog PAL/NTSC on Mini-BNC connectors |
| USB | USB 2.0 |
| RS232 | 1x for debugging purposes |
| Loudspeaker | Lautsprecher mono 85 ± 3dbA & stereo audio output for external amplifier |
| Light sensor | available |
| LED | status LEDs red/green |
| Number of keys | 1 (RESET rear) |
| Protection class | IP66 |
| Mounting/installation | stand alone mounting |
| Product type | Dashboard Leonardo |
