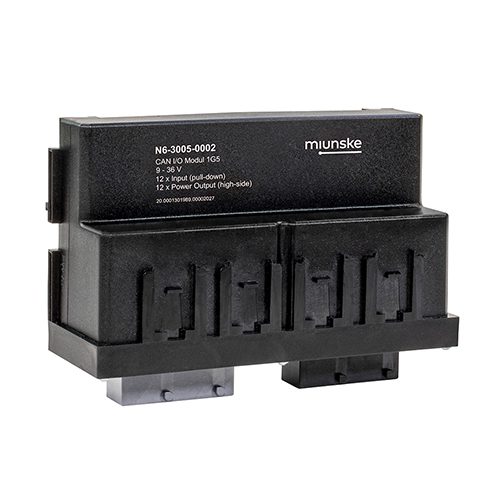

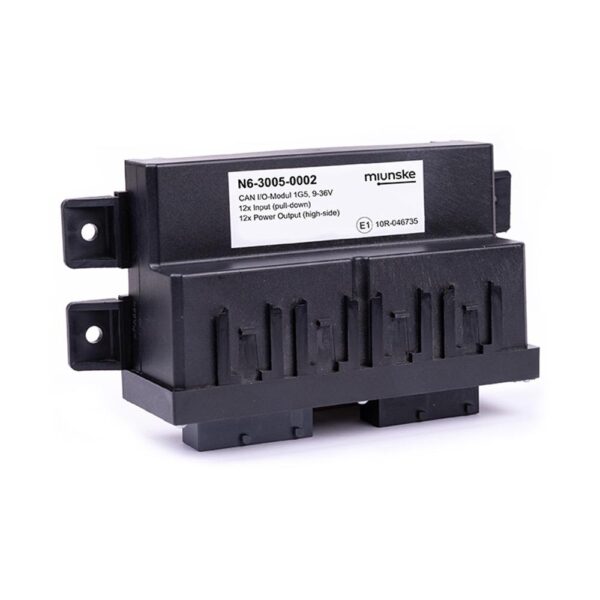

CAN I/O-Module 1G5, 9-36V, 12 x Input (pull-down), 12 x Power Output (high-side), sealed

Name: CAN I/O-Module 1G5, 9-36V, 12 x Input (pull-down), 12 x Power Output (high-side), sealed
Brand: CAN-Bus Communication Modules
SKU: 5009931
Availability: InStock

1,00 €

Old article number N6-3005-0002

Notice text: Parameterization via CAN using miunske-toolchain, optionally freely programmable (API), fuse holder and relay socket can be plugged in

Manufacturer number miunske

article number: 5009931

technical information

CAN protocol	2.0 A/B (ISO 11898)
Rated voltage	12/24V
Switching input	12 x pull-down: 8 x analog/digital, 4 x digital
Switching output	12x 5A (high-side)
Standby current	38mA /12V
Connection	2 x 16 Male connector for JPT
Case material	synthetic material
Mounting/installation	DIN rail mounting, fastening bracket
Permissible ambient temperature	-40°C up to 85°C
Protection class	IP67
Product type	CAN-Bus communication modules
