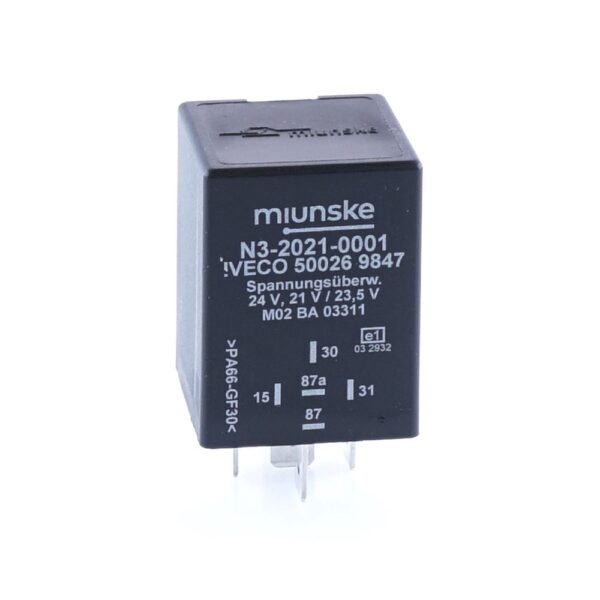

Voltage Monitoring Relay 24V, U(on) 23.5V, U(off) 21V, delayed
Voltage Monitoring Relay 24V, U(on) 23.5V, U(off) 21V, delayed
Electronical Relays Voltage Monitoring Relays
1,00 €
Enquiry
Voltage Monitoring Relay 24V, U(on) 23.5V, U(off) 21V, delayed

Voltage Monitoring Relay 24V, U(on) 23.5V, U(off) 21V, delayed

1,00 €

Old article number N3-2021-0001
Manufacturer number miunske
article number: 5002972
Enquiry
Checklist Streamline Icon: https://streamlinehq.com

Compare
Rated voltage 24V
Rated current 25/25A
Switching voltage U(on) 23.5V; U(off) 21V
Connection 5x 6,3mm
Switch-off delay 10s
Turn-on delay 0.1s
Output dry contact
Mounting/installation on plug base or via fastening lug
Permissible ambient temperature -40°C up to 85°C
Protection class IP53
Product type voltage monitoring relay
