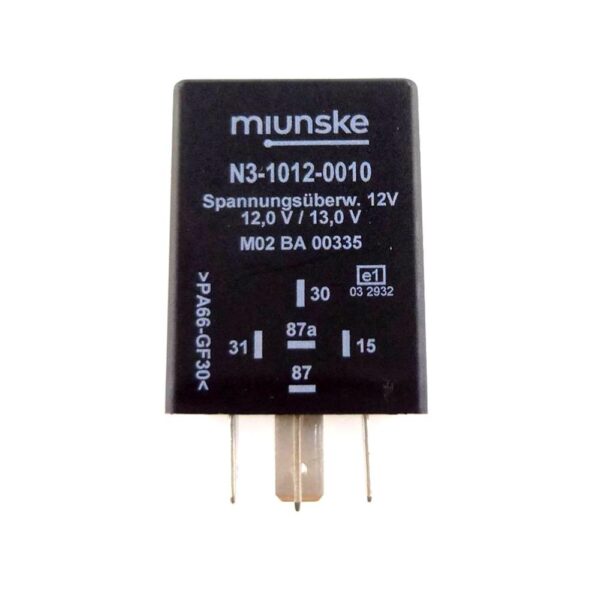

Voltage Monitoring Relay 12V, U(on) 13V, U(off) 12V, delayed 0.1sec, reclosing lock 180sec
Voltage Monitoring Relay 12V, U(on) 13V, U(off) 12V, delayed 0.1sec, reclosing lock 180sec
Electronical Relays Voltage Monitoring Relays
1,00 €
Enquiry
Voltage Monitoring Relay 12V, U(on) 13V, U(off) 12V, delayed 0.1sec, reclosing lock 180sec

Voltage Monitoring Relay 12V, U(on) 13V, U(off) 12V, delayed 0.1sec, reclosing lock 180sec

1,00 €

Old article number N3-1012-0010
Manufacturer number miunske
article number: 5011062
Enquiry
Checklist Streamline Icon: https://streamlinehq.com

Compare
Rated voltage 12V
Rated current 10/15A
Switching voltage U(on) 13V; U(off) 12V
Connection 5x 6,3mm
Turn-on delay 0.1s
Output dry contact
Mounting/installation on plug base or via fastening lug
Permissible ambient temperature -40°C up to 85°C
Protection class IP53
Product type voltage monitoring relay
