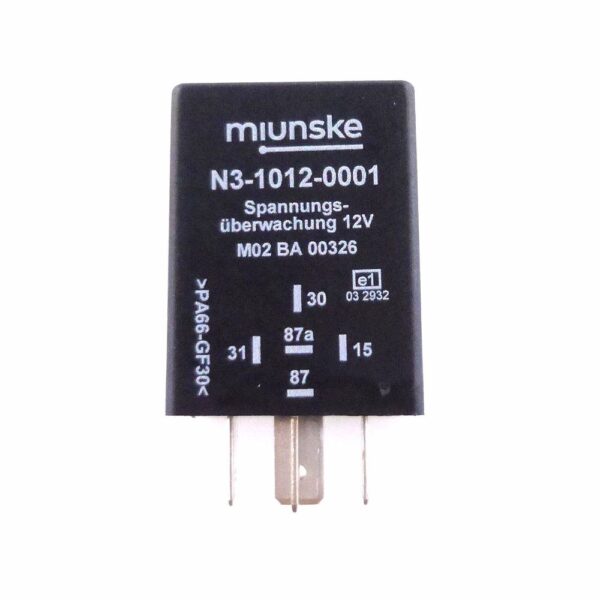

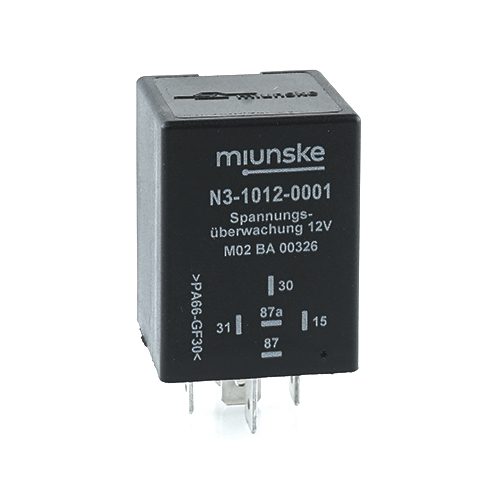

Voltage Monitoring Relay 12V, U(on) 12,7V, U(off) 12V, delayed
Voltage Monitoring Relay 12V, U(on) 12,7V, U(off) 12V, delayed
Electronical Relays Voltage Monitoring Relays
1,00 €
Enquiry
Voltage Monitoring Relay 12V, U(on) 12,7V, U(off) 12V, delayed

Voltage Monitoring Relay 12V, U(on) 12,7V, U(off) 12V, delayed

1,00 €

Old article number N3-1012-0001
Manufacturer number miunske
article number: 5007457
Enquiry
Checklist Streamline Icon: https://streamlinehq.com

Compare
Rated voltage 12V
Rated current 10/15A
Product type voltage monitoring relay
Switching voltage U(on) 12.7V; U(off) 12V
Connection 5x 6,3mm
Switch-off delay 5s
Turn-on delay 5s
Output dry contact
Mounting/installation on plug base
Permissible ambient temperature -40°C up to 85°C
Protection class IP53
