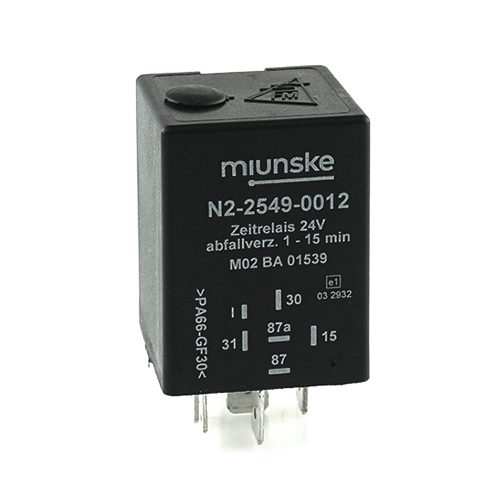

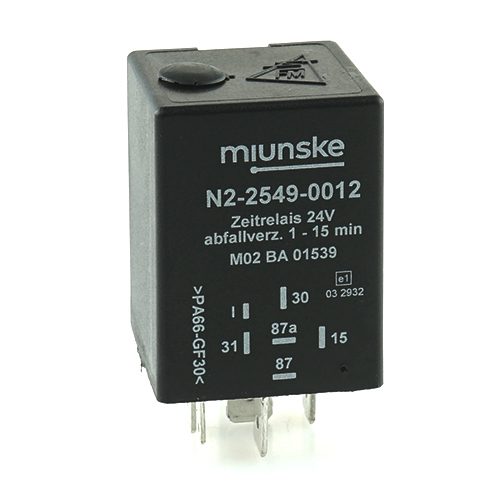

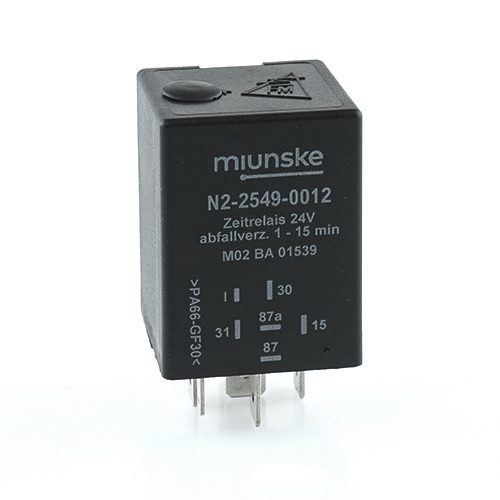

Switch-off Delayed Timer Relay 24V, 1…15min adjustable, dry contact, retriggerable
Switch-off Delayed Timer Relay 24V, 1…15min adjustable, dry contact, retriggerable
Electronical Relays Timing Relays
1,00 €
Enquiry
Switch-off Delayed Timer Relay 24V, 1...15min adjustable, dry contact, retriggerable

Switch-off Delayed Timer Relay 24V, 1…15min adjustable, dry contact, retriggerable

1,00 €

Old article number N2-2549-0012
Notice text: polarity on pin 15 and 31 is reversible, retriggerable
Manufacturer number miunske
article number: 5014969
Enquiry
Checklist Streamline Icon: https://streamlinehq.com

Compare
Rated voltage 24V
Rated current 10/15A
Connection 5x 6,3mm, 1x 2,8mm
Delay time 1-15min
Output dry contact
Mounting/installation on plug base
Permissible ambient temperature -40°C up to 85°C
Protection class IP53, water protected
Product type time relay, switch-off delayed, adjustable
