technical information
-
Files & Downloads
| Connection | 5x 6,3mm, 4x 2,8mm |
|---|---|
| Electrical connection | crimping |
| Flammability class | UL94 HB |
| Mounting/installation | lateral locking, mounting via fastening lug or in combination with other sockets, screw-on type |
| Material | PA66 |
| Terminal | flat push-on receptacle, with retainer tab |
| Colour | black |
| Permissible ambient temperature | -40°C up to 85°C |

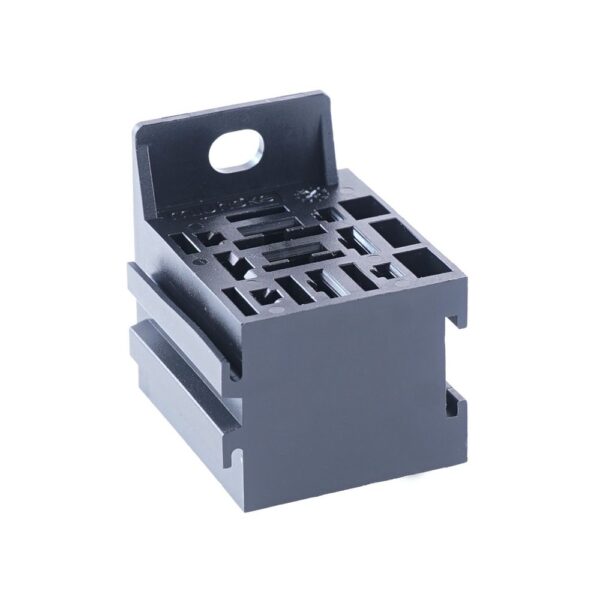

| Product type | Mini-Relay plug base |
