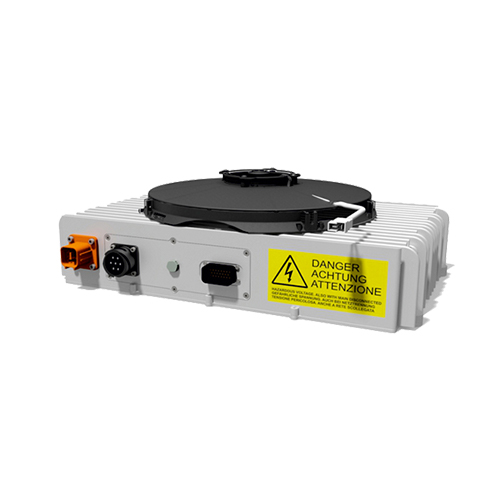

EVO11KA, 11 kW EV/HEV on-board charger for heavy-duty and robust vehicle applications

EVO11KA charger series is a very versatile, safe, high power density charger for on-board electric vehicle applications.

• US and EU single-phase and three-phase AC input voltage range (120/208/230/240/380/400/420 Vac).
• SAE J1772 and EN 61851 compliance.
• HVDC interlock monitoring.
• Typical efficiency >90%.
• High AC input power factor (low reactive power).
• AC/DC galvanic isolation assures a definitive safety separation between the vehicle and grid.
• High IP protection rating (EN60529).
• Outputs are short-circuit and reverse polarity protected.
• Fully CAN controlled (v2.0B).
• SAE J1939 available.
• Super-capacitors charging from zero voltage.
