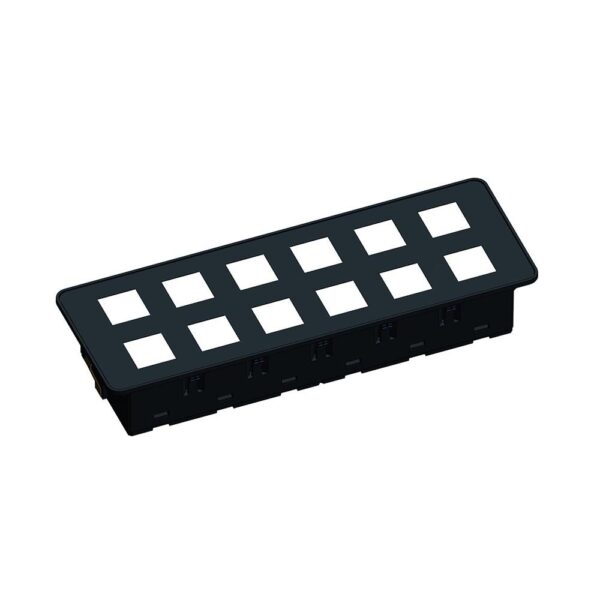

CAN Keypad with 12 individual assignable fields
– fields can defined as switches or indicator
– RGB-LEDs for free color selection
– dimming via integrated light sensor or CAN-Message
– customer specific front foil via laser- and / or printing process
– graphic design und parameterization with PC Software
– resistance of printing to detergents and desinfectants
optional:
– additional vertical or horizontal bar graph display elements
– Interface for up to two encoders with push-function
– customizable frame design (various metal design options )
– doming for haptic feedback
– optional lateral plug

CAN Protokoll 2.0 A/B (ISO 11898)
Anschluss Micro Mate-N-Lock 3mm, 6-pin
zul. Umgebungstemperatur -30°C up to 70°C
Schalteingänge 2 x digital pull-down
Gehäusematerial ABS
Nennspannung 12/24V
Nennstrom 60/100mA
Ruhestrom 2/4mA/12V
Produkttyp CAN-Bus control and display unit
