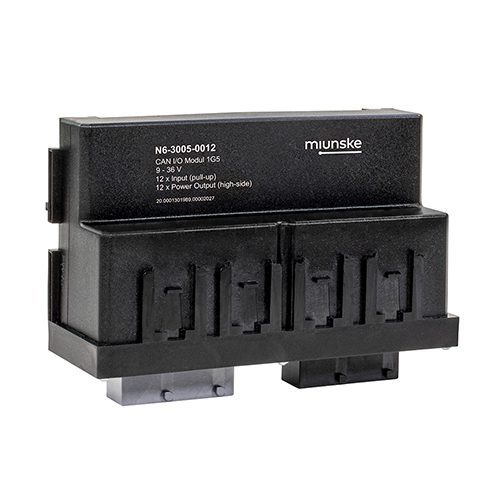

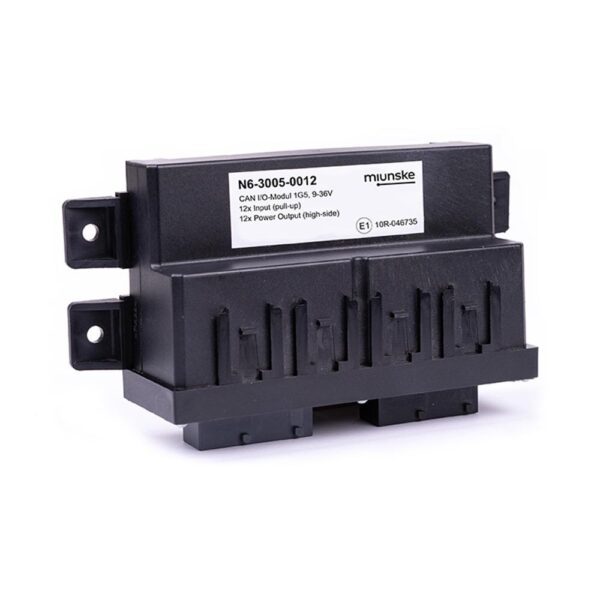

CAN I/O-Module 1G5, 9-36V, 12 x Input (pull-up), 12 x Power Output (high-side), plastic cover screwed
CAN I/O-Module 1G5, 9-36V, 12 x Input (pull-up), 12 x Power Output (high-side), plastic cover screwed
CAN-Bus Communication Modules
1,00 €
Enquiry
CAN I/O-Module 1G5, 9-36V, 12 x Input (pull-up), 12 x Power Output (high-side), plastic cover screwed
CAN I/O-Module 1G5, 9-36V, 12 x Input (pull-up), 12 x Power Output (high-side), plastic cover screwed

CAN I/O-Module 1G5, 9-36V, 12 x Input (pull-up), 12 x Power Output (high-side), plastic cover screwed

1,00 €

Old article number N6-3005-0012
Notice text: Parameterization via CAN using miunske-toolchain, optionally freely programmable (API), fuse holder and relay socket can be plugged in
article number: 5009725
Enquiry
Checklist Streamline Icon: https://streamlinehq.com

Compare
Weight 198g
CAN protocol 2.0 A/B (ISO 11898)
Connection 2 x 16 Male connector for JPT
Permissible ambient temperature -40°C up to 85°C
Switching output 12x 5A (high-side)
Switching input 12 x pull-up: 8 x analog/digital, 4 x digital
Case material synthetic material
Rated voltage 12/24V
Standby current 38mA /12V
Protection class IP54
Product type CAN-Bus communication modules
