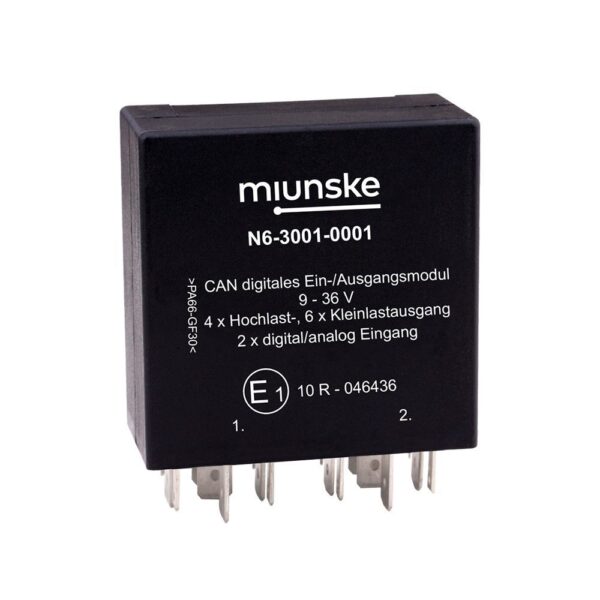

CAN I/O-Module 1G1, 9-36V, 2 x d/a Input, 4 x Power Output, 6 x Output
CAN I/O-Module 1G1, 9-36V, 2 x d/a Input, 4 x Power Output, 6 x Output
CAN-Bus Communication Modules
1,00 €
Enquiry
CAN I/O-Module 1G1, 9-36V, 2 x d/a Input, 4 x Power Output, 6 x Output

CAN I/O-Module 1G1, 9-36V, 2 x d/a Input, 4 x Power Output, 6 x Output

1,00 €

Old article number N6-3001-0001
article number: 5006836
Enquiry
Checklist Streamline Icon: https://streamlinehq.com

Compare
Weight 60g
CAN protocol 2.0 A/B (ISO 11898)
Connection 10 x 6,3mm, 8 x 2,8mm
Permissible ambient temperature -40°C up to 85°C
Switching output 4 x 5A (all PWM-capable, current measurement from 3A), 6 x low load high-side, total current 350mA (high-side)
Switching input 2 x individually configurable, digital (pull-down)/analog (12 bit A/D conversion)
Material plastic
Rated voltage 12/24V
Standby current <25mA
Protection class IP53
Product type CAN-Bus communication modules
