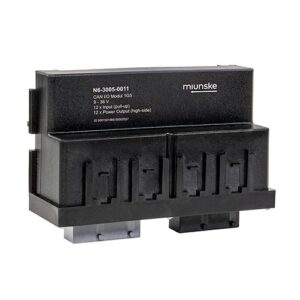

CAN I/O-Module 1G5-48, 9-60V, 12 x Input (pull-up), 12 x Power Output (high-side), plastic cover screwed

Name: CAN I/O-Module 1G5-48, 9-60V, 12 x Input (pull-up), 12 x Power Output (high-side), plastic cover screwed
Brand: CAN-Bus Communication Modules
SKU: 245052
Availability: InStock

0,00 €

Old article number N6-3205-0002

Notice text: pre fuse advised, two vehicle electrical systems can be switched separately, parameterizable standard functions by miunske-toolchain, optional free programmable (API), additonal fuseholders and relay sockets can be plugged

article number: 5018066

technical information
Files & Downloads

Weight	150g
CAN protocol	2.0 A/B (ISO 11898)
Connection	2 x 16 Male connector for JPT
Permissible ambient temperature	'-40°C up to 80°C
Controller	Freescale MC9S08DV32
Switching output	8 x 5A high-side, 4 x 2,5A high-side
Switching input	12 x pull-up: 8 x analog/digital, 4 x digital
Material	plastic
Rated voltage	12/24/48V
Standby current	17mA/12-24V; 24mA/48V
Protection class	IP54
Product type	CAN-Bus communication modules 48V
