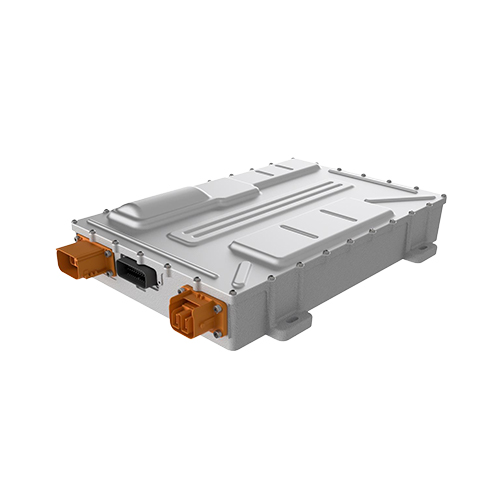

BHP22KL, 22kW, single- and three-phase bidirectional on-board charger for heavy-duty and rugged vehicle applications

BHP22KL charger series is a 22 kW bidirectional high power density power module, very versatile, safe, optimized for on-board battery powered vehicle applications.

· 7.3 kW AC single and 22 kW three-phase bidirectional operation
· Parallelable in charge mode and in V2L operation
· AC charger – SAE J1772 and EN 61851 compliance
· DC fast charging (CCS) communication – DIN 70121, ISO 15118
· AC plug locking/unlocking management
· AC and HVDC interlock monitoring
· Typical efficiency >94%
· AC/DC galvanic isolation
· UDS, functional safety (ASIL-B), cybersecurity compliant
· IP67, IP6K9K protection rating
· HVDC outputs are short-circuit protected
· Fully CAN monitored and controlled (v2.0B)
· SAE J1939 compliant
· UL1741, IEEE1547 compliant
